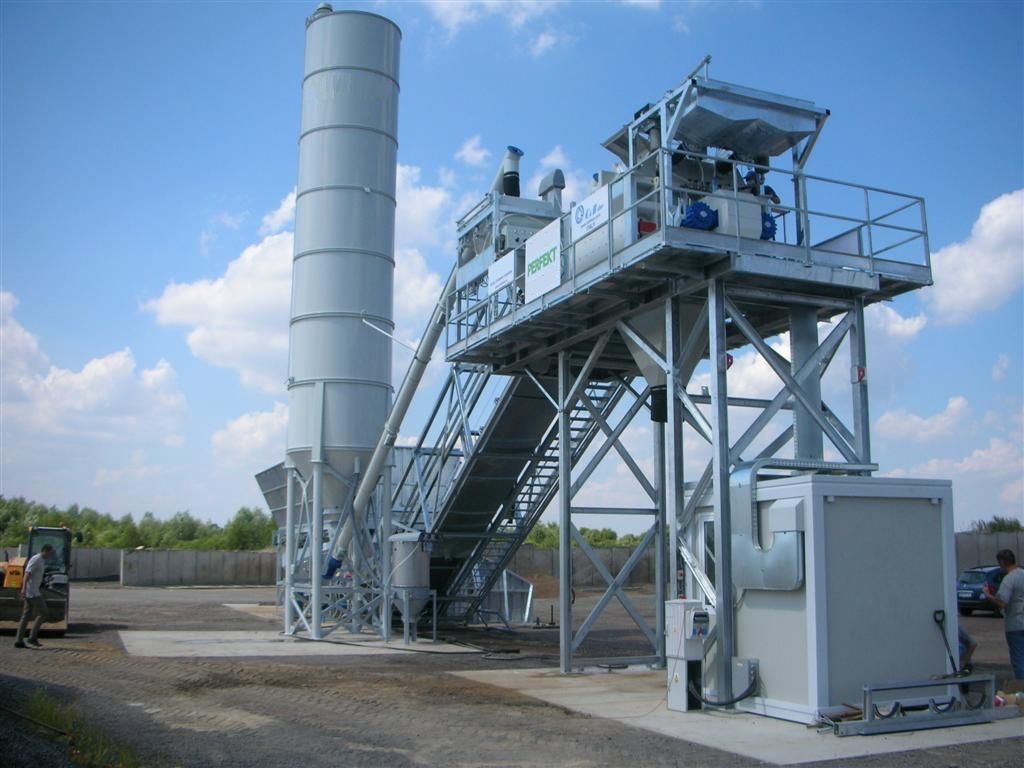

NCS 120 - Compact Concrete Batching Plant

Easy to install, Easy to maintenance, Easy to operate

Main Components

• Batching cycles

  3m³

• SICOMA-OMG 4000/3000

  Twin-Shaft Mixer

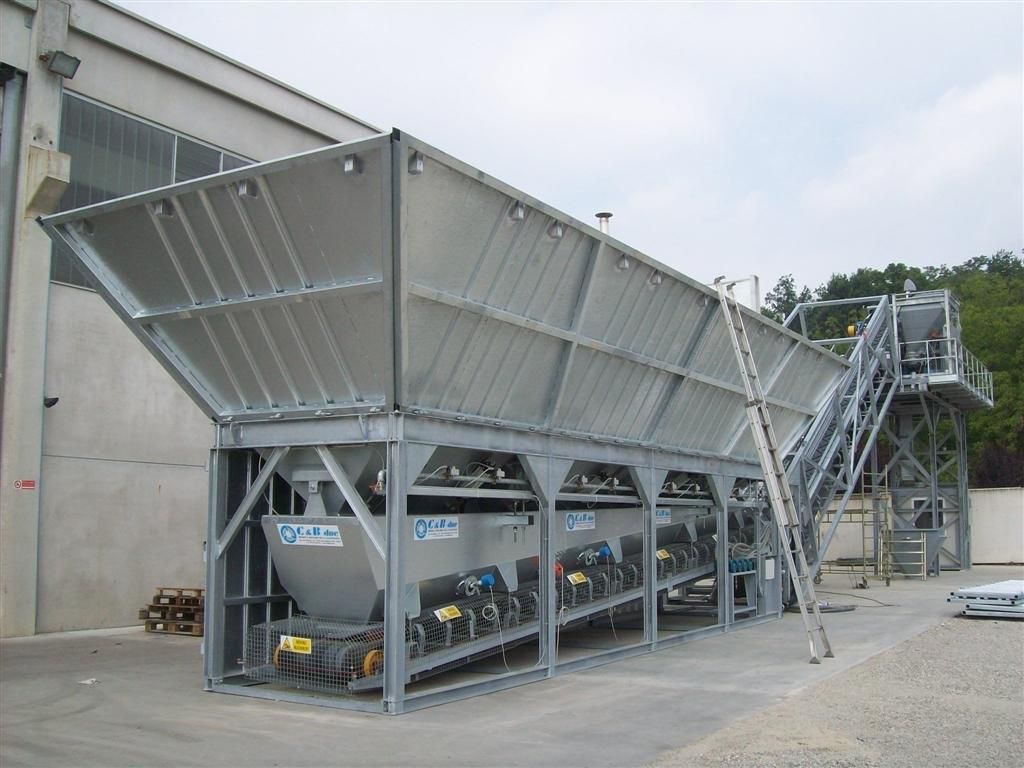

• 4 aggregate hoppers

  Each 30m³ (other sizes available)

• Conveyor belt

  Transferring aggregates to the mixer

• Cement scale with 1500kg

  Weighing capacity

• Water scale with 750kg

  Weighing capacity

• Water dosing assembly with meter

  For additional supply requirements

• Water system equipped

  5.5kW Pump and pressure regulation system

• 2 additive pumps

  (expandable for more)

• Pneumatic system equipped

  9kW compressor

• Required installation area

  180m²

• Mechanical erection

  2 days (if foundation is ready)

• Commissioning and training

  3 days

• CE certified

  UKCA certificate

• Spare parts

  Stocked in the UK

• Service and maintenance

  Support in the UK

• 12 month warranty

  From the date of commissioning

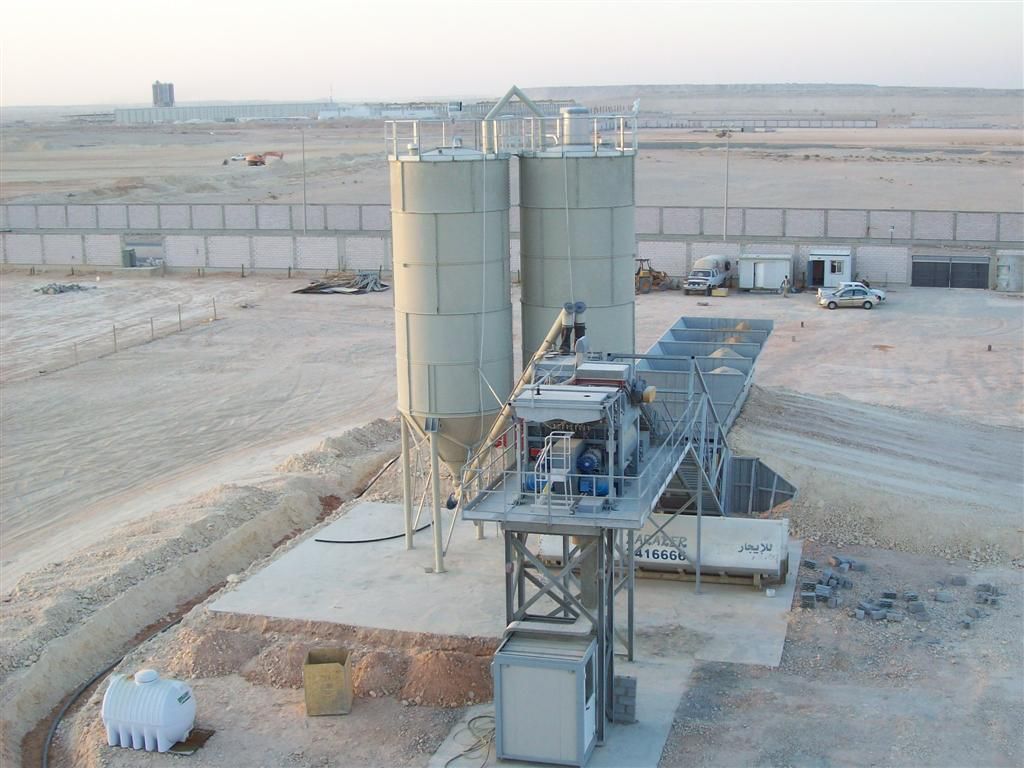

NCS 80 - Compact Concrete Batching Plant

Easy to install, Easy to maintenance, easy to operate

Main Components

• Batching Cycles

  2m³

• SICOMA-OMG 3000/2000

  Twin Shaft Mixer

• 4 aggregate hoppers

  25m³ a bin (possibility for more sizes)

• Conveyer belt

  For transfer of aggregate to concrete mixer

• Cement Scales

  1000kg weighing capacity

• Water scales

  500Kg weighing capacity

• Water dosing assembly with meter

  For additional water supply requirements

• Water installation equipped

  5.5kW supply pump and pressure regulation system

• 2x additive pumps

  (possibility for more)

• Pneumatic installation equipped

  7.5kw compressor

• Surface area required

  to install the plant 180m²

• Mechanical erection

  2 days if the foundation ready

• Commissioning training

  3 days

• CE approved

• UK base spare parts

• UK base service maintenance

• 12 months warranty

  from the day of commissioning

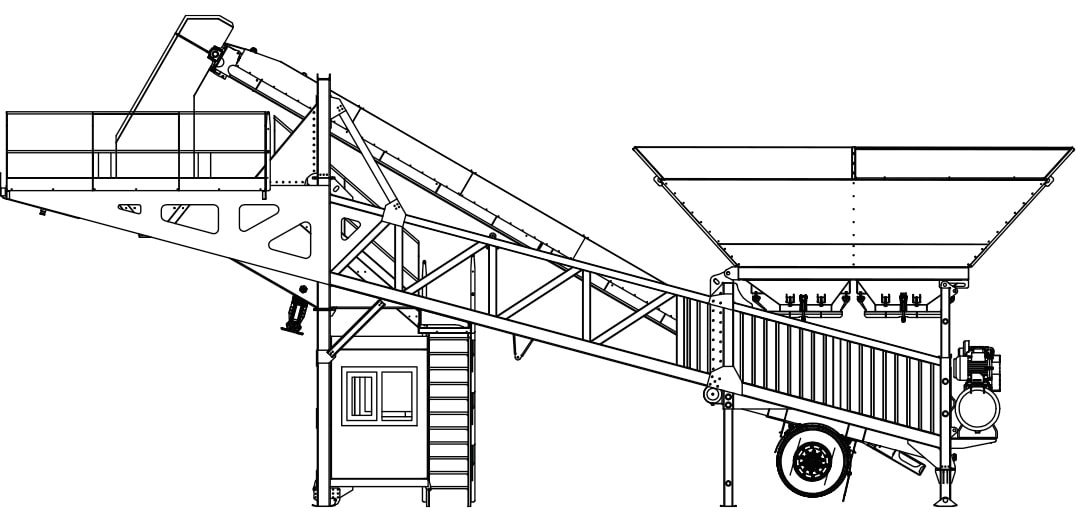

NCS 80D - Dry Concrete Batching Plant

Main Components

• Capacity

  80m³/hour

• Nr. 4 Aggregate bins

  8.5m³ each

• Pneumatic system

• 4 Load cells

  5000kg each

• Piston Air Compressor

  T1500

• Cement Weighing Hopper

  2000kg

• Aggregate Conveyor Belt

  14000mm, 15kW

• Steel structure

  Truck wheels

• Control system

  Automatic with Beton automation software
