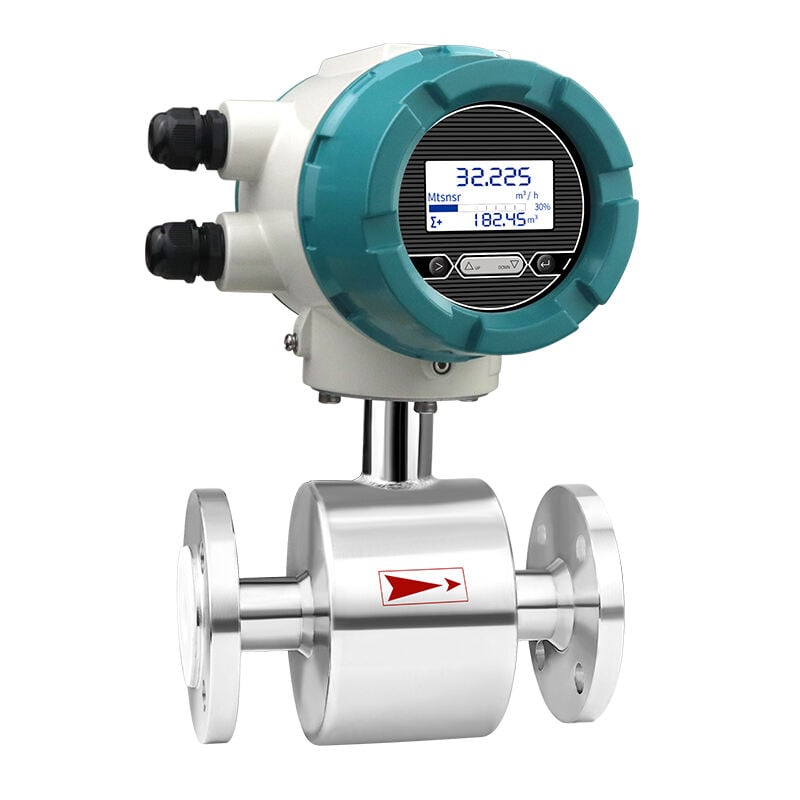

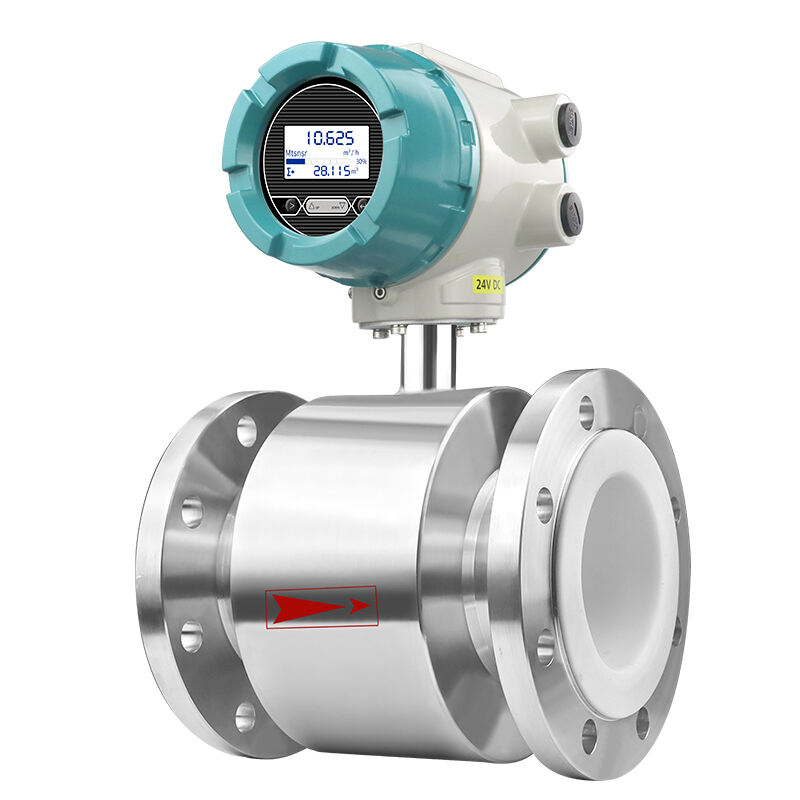

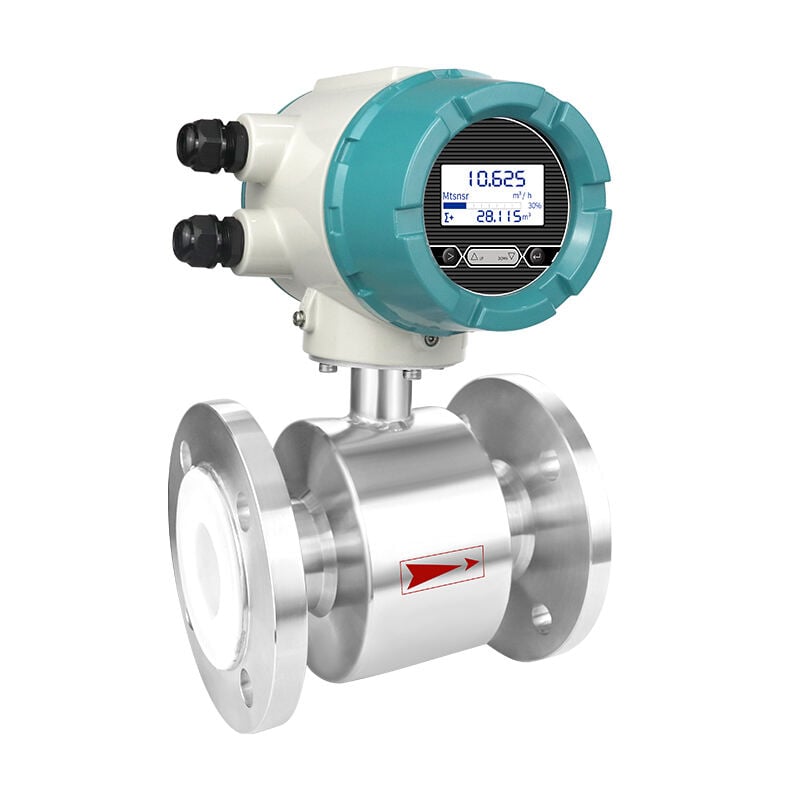

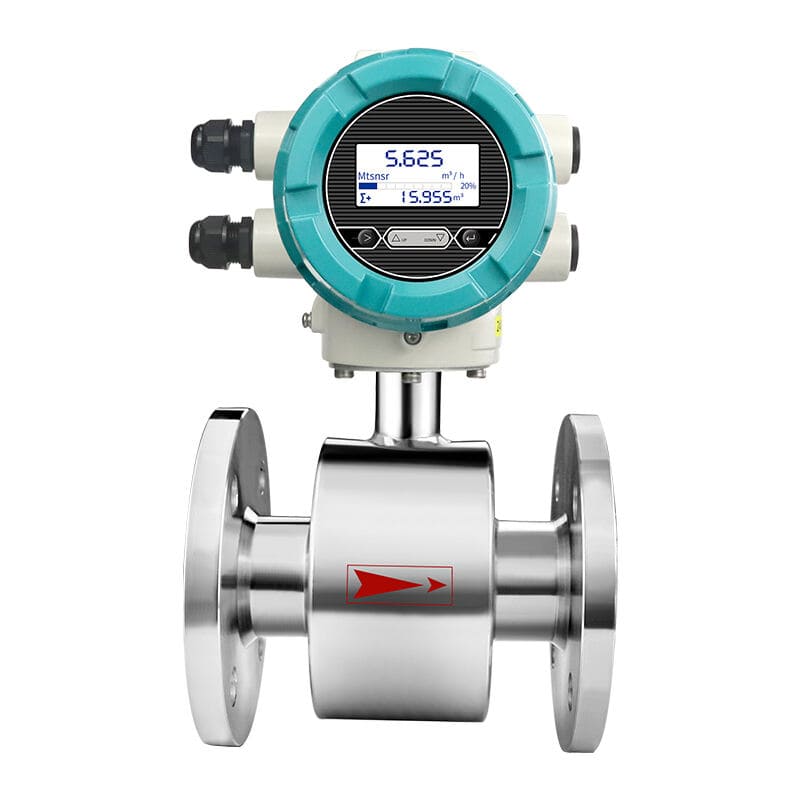

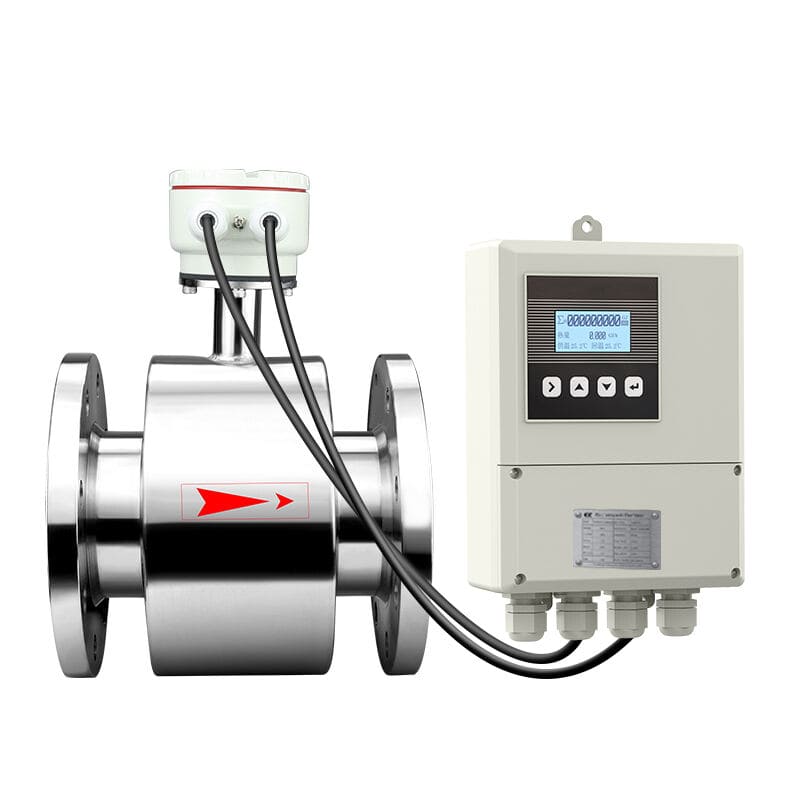

Stainless Ateel Electromagnetic Flow Meter

GTEF50 series electromagnetic flowmeters utilize a Chinese-English electromagnetic converter and a high-speed CPU core. They offer extremely fast computing speed, high accuracy, and reliable measurement performance. The conversion circuit boasts a high input impedance of 750Ω, a common-mode rejection ratio exceeding 100dB, and better than 90dB of rejection for external interference and 60Hz/50Hz interference.

The valve body is constructed of stainless steel, offering high strength and durability, hygienic properties suitable for cleaning and sterilisation, and meeting food and medical hygiene standards. Its corrosion resistance allows flow measurement of fluids with low conductivity.

The sensor utilises non-uniform magnetic field technology and a unique magnetic circuit structure, resulting in a stable and reliable magnetic field. Connection options include flanges, threads, and clamps. The valve body can be lined with rubber or PTFE, and various power supplies are available: 85-265V/45-63Hz, DC24V, and battery.
